Step-by-Step Guide to Installing a Reliable Earthing System

A well-designed earthing system alone is not sufficient; correct installation is equally important. Even the best products will fail if improperly installed.

Below is a basic guide for installing an efficient earthing system.

Installation Steps
Step 1: Site Assessment

Conduct soil resistivity testing to determine the best grounding method.

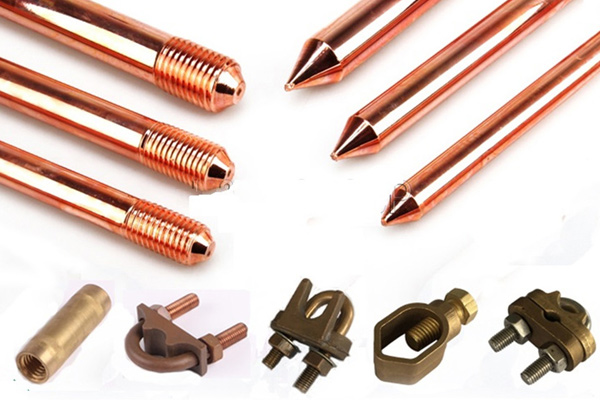

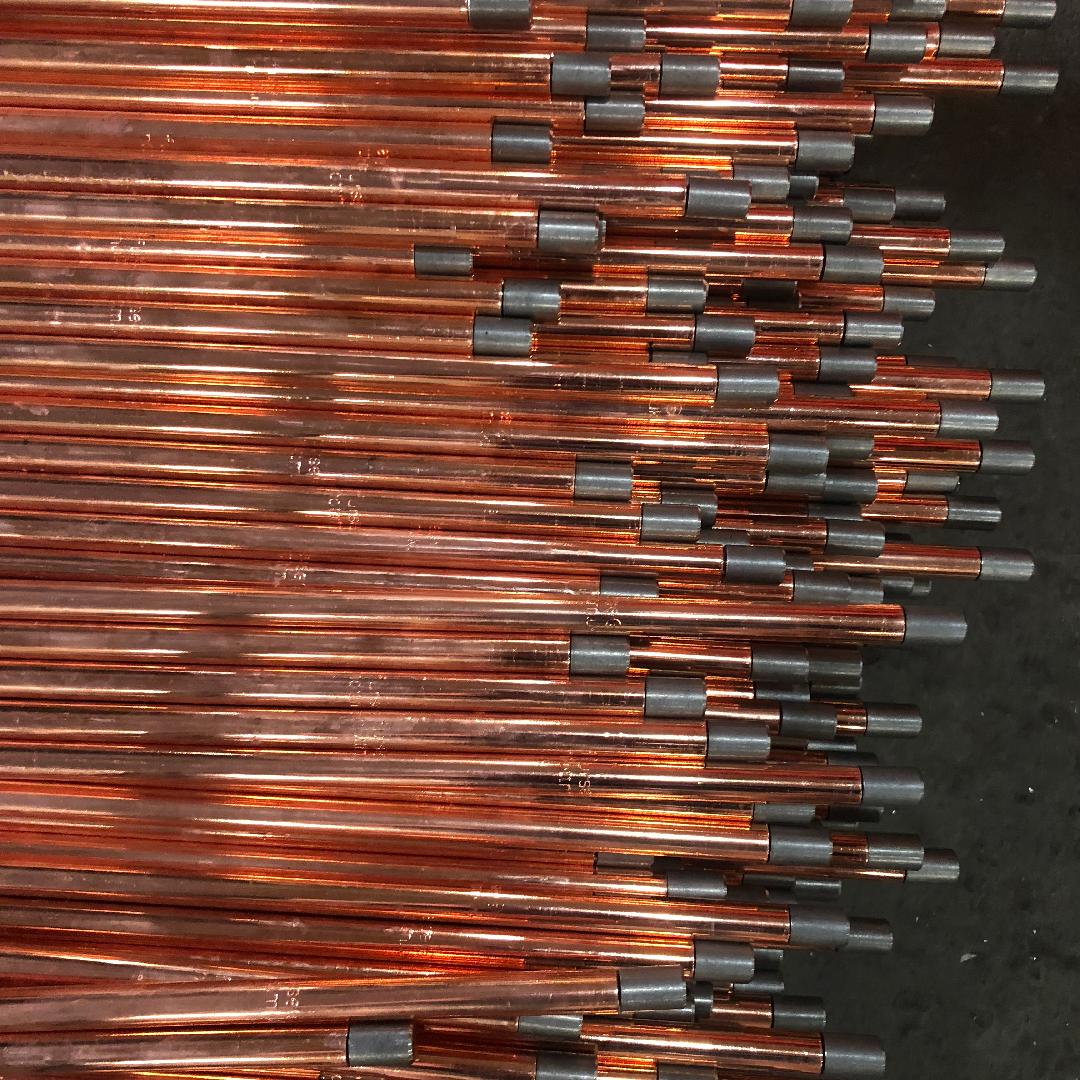

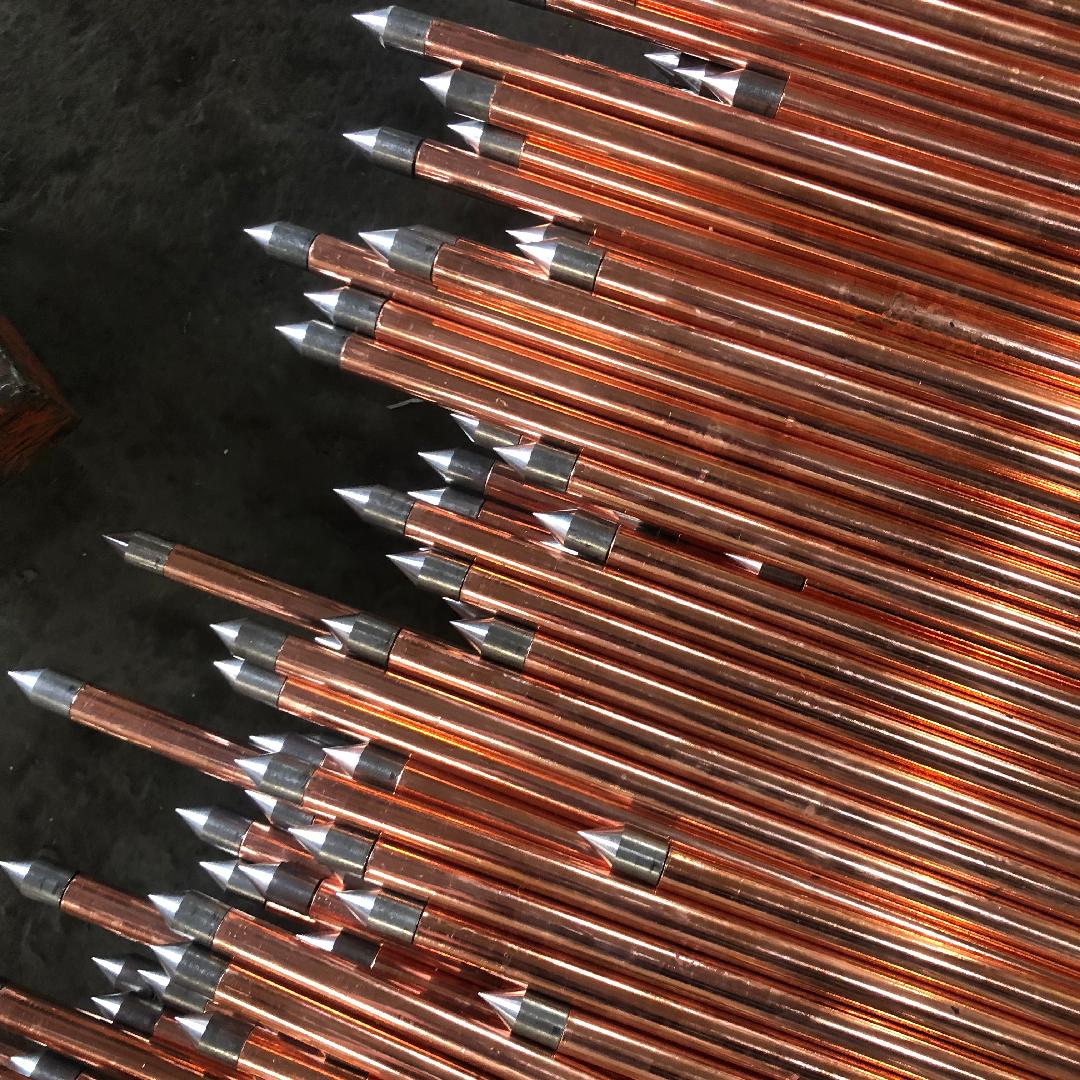

Step 2: Ground Rod Installation

Drive the rod vertically or at an angle until the required depth is reached.

Step 3: Connection

Use high-quality grounding clamps or exothermic welding for secure connections.

Step 4: Use of Earth Enhancement Material

In dry areas, apply enhancement compounds around the rod to reduce resistance.

Step 5: Testing and Verification

Measure grounding resistance to confirm system efficiency.

Best Practices

Use corrosion-resistant materials

Ensure secure and permanent connections

Avoid sharp bends in conductors

Maintain regular inspections

Importance of Professional Installation

Improper methods may compromise safety and lead to system failure. Always follow IEC standards or consult professional technicians.
